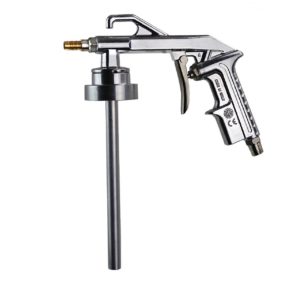

Economy Undercoating Spray Gun

Spray gun designed for easy application of undercoating, wax/lanolin based rustproofing, sound proofing, gravel protection and bed liner.

  • Aluminum gun body and intake tube
  • Working pressure: 3-4 bar. (max 10 bar), 40-80 psi (max 140 psi)
  • Approximate air consumption: 200-300 L per min (7 to 10 CFM)
  • Air connector: 1/4″ NPT
  • Net weight: 9 oz
  • Noise level <80dba
  • Made in Italy
  • Product ID: ECON/USA

Product Description

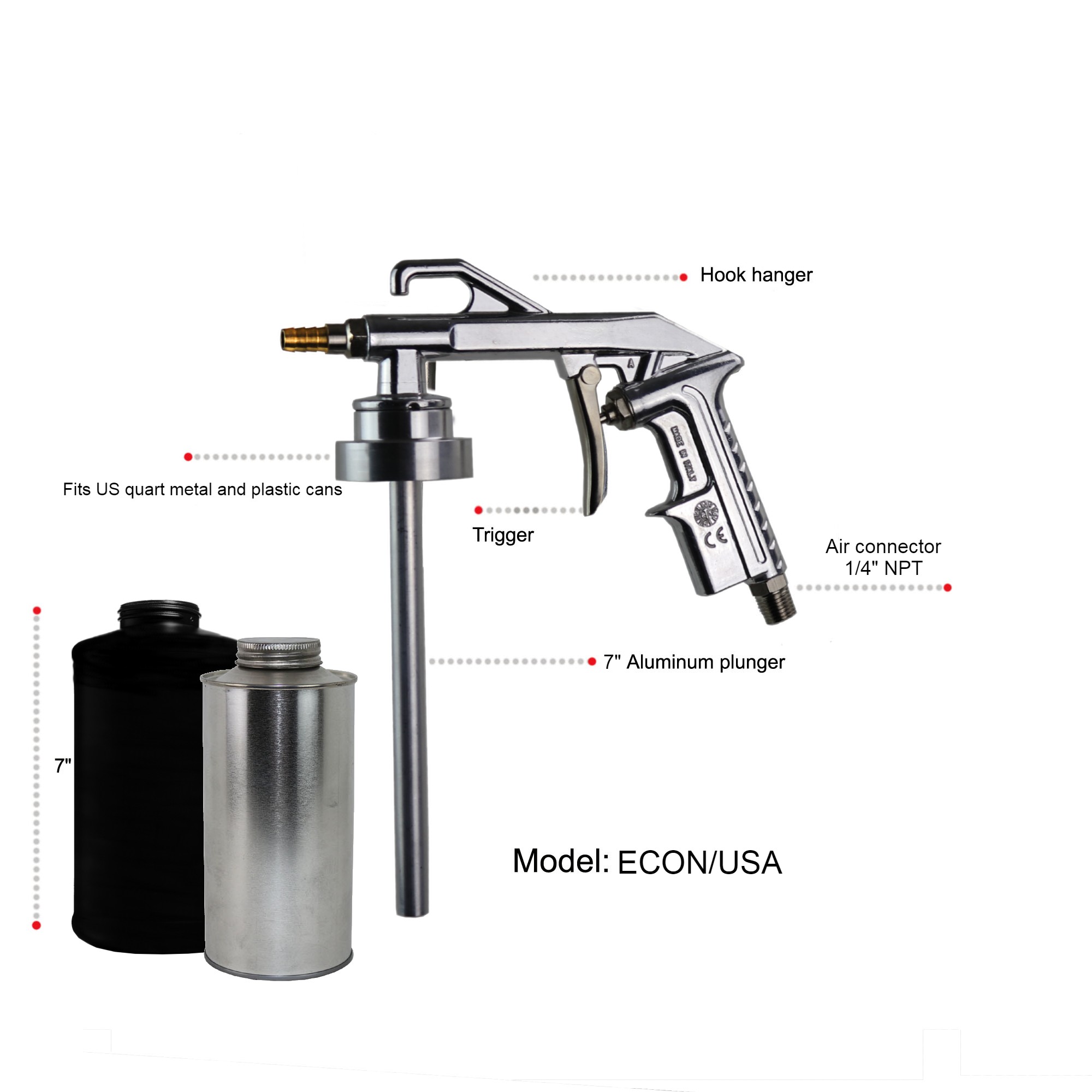

Spray gun designed for easy application of undercoating, wax/lanolin based rustproofing, sound proofing, gravel protection and bed liner. The gun has a threaded collar which allows for direct attachment to standard, metal and plastic, US Quart cans. This gun is equipped with a wide, aluminum intake tube 7″ long ( 3/8″ ID ).

All metal spray gun designed for the application of soundproofing, gravel protection, bedliners, wax/lanolin based rust proofing and undercoating.
The gun has a threaded collar which allows for direct attachment to standard US quart cans.

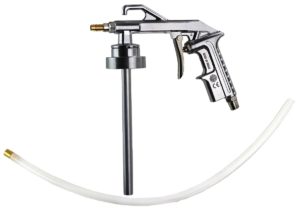

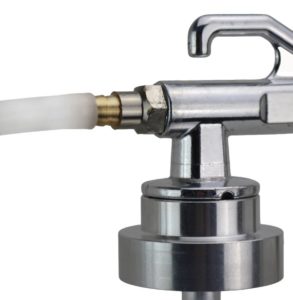

A plastic 18.5″ long wand, supplied with the gun, can be used for spraying in hard-to-reach place ie around mufflers and exhaust pipes.

Wand works best with wax and lanolin based coatings. High viscosity products may be too thick to spray through wand. If product is hard to spray through the wand, shortening the wand or adding thinner (consult product manufacturer for appropriate thinning agent) might  help.

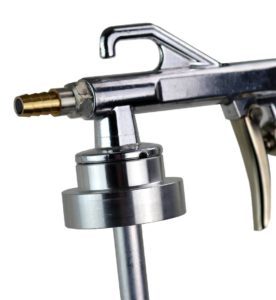

Although the nozzle of this gun is NOT adjustable, different textures can be obtained by varying the nozzle distance to the substrate, changing the angle of the gun and the air supply pressure.
