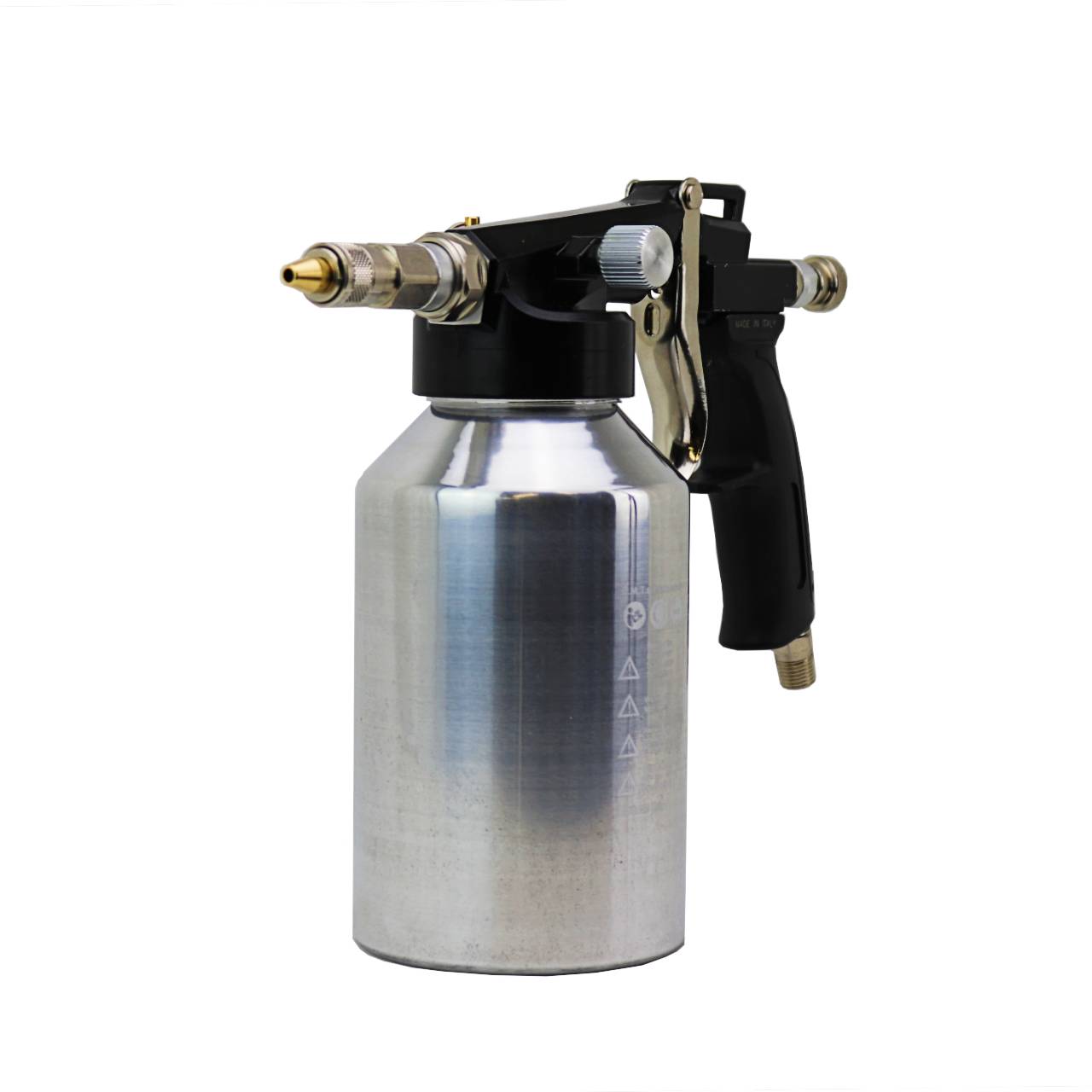

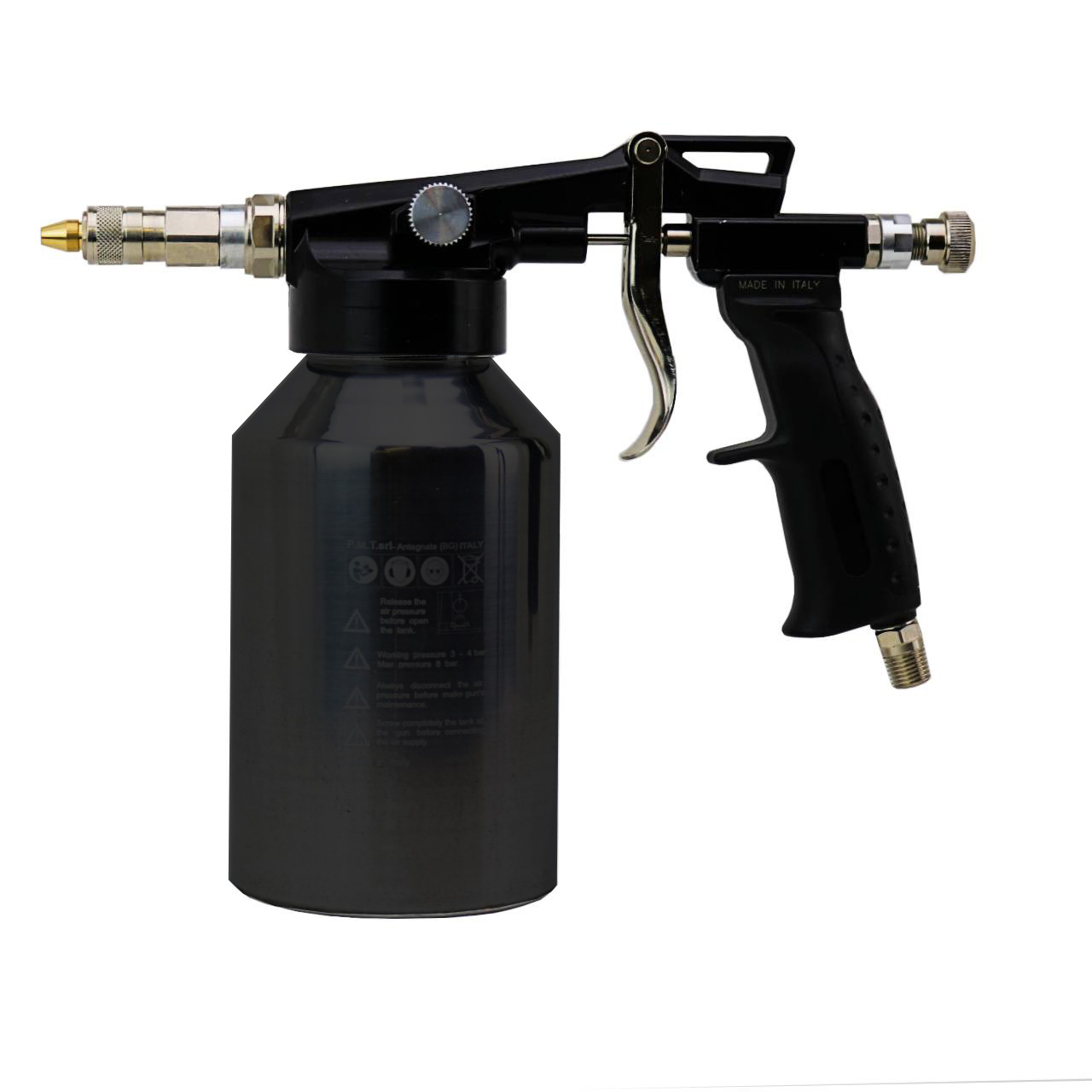

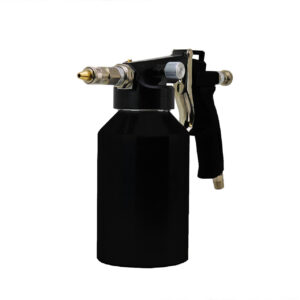

Rust Proofing Gun

Professional rustproofing gun designed to apply protective coatings inside doors, beams, rocker panels and other cavities.

  • Die cast aluminum body
  • Aluminum tank
  • Stainless steel needle
  • Tank capacity: 1 liter
  • Replacement parts available
  • 1/4″ NPT air connector
  • Air consumption: 7 – 10 CFM
  • Working pressure: 60 – 90 PSI
  • Weight: 1.07 kg (2.36 lbs)
  • Made in Italy
  • Product ID: WAX

Product Description

Professional rust proofing gun designed to apply protective coatings such as cavity wax inside doors, beams, rocker panels, and other cavities. This gun allows for pressure to build up inside the tank assuring the coating will be atomized at the tip of the wand and provide total coverage of the rustproofing inside the cavity.

All metal gun designed for industrial use by body shops, car dealers and rustproofing professionals. Also for the hobbyist and do-it-yourselfer.

Replacement parts for WAX Rustproofing Spray Gun

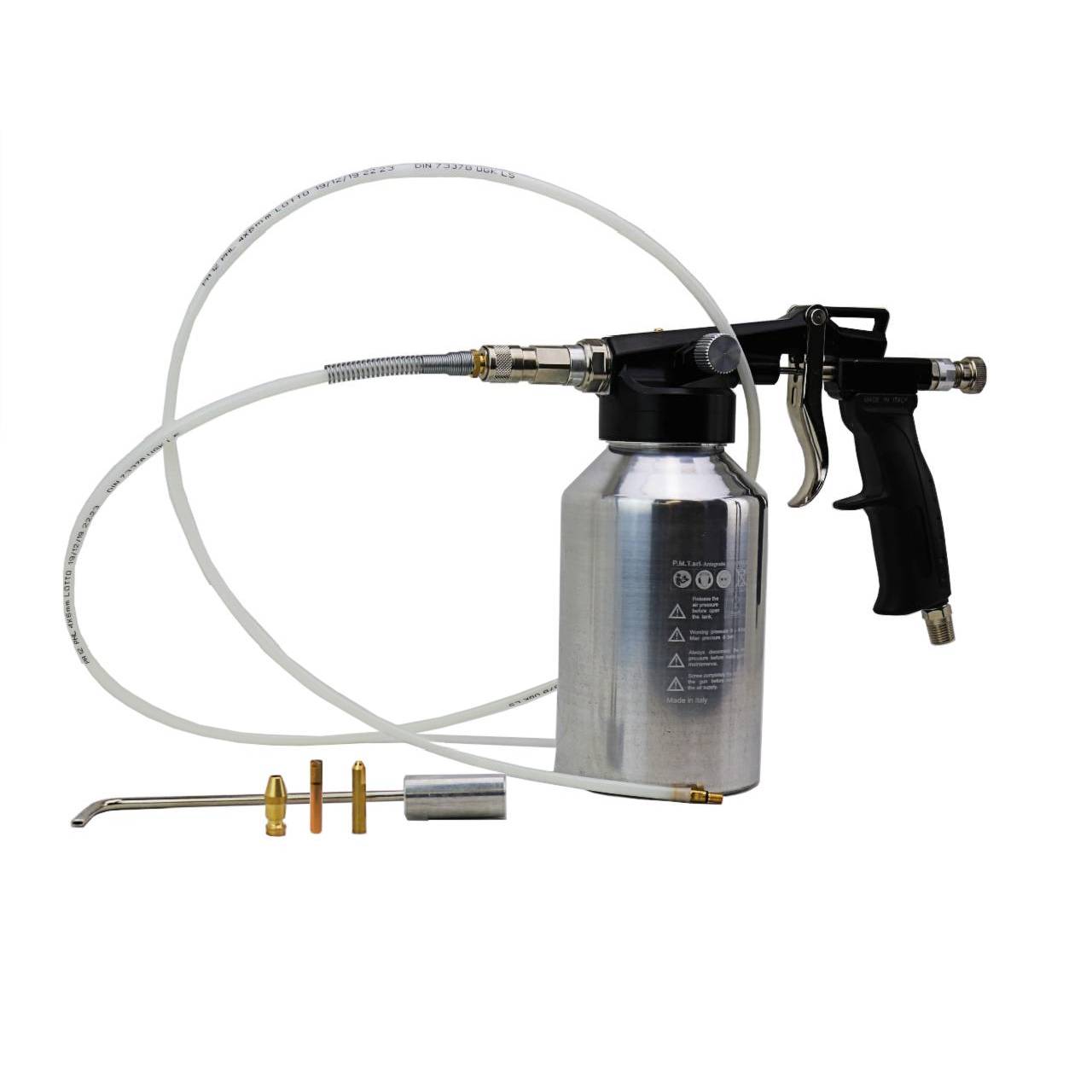

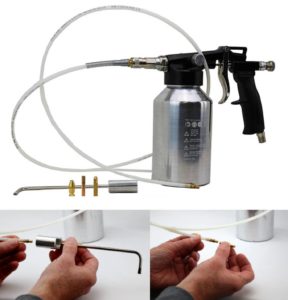

Equipped with a brass spray tip to spray directly out of the gun and comes with 5 ft wand with 2 spray attachments. Handheld 90 degree jet spray pattern and mist 180 degree spray pattern.

Use to apply rustproofing coatings such as Tekton 34 Cavity Wax, Fluid Film, Wax Oil, etc. Not recommended for application of undercoatings.

Wand Cleaning:

Upon finishing the rustproofing task, purge leftover product from the wands by pulling the trigger halfway. Rinse wand with solvent/water to dissolve product left inside the wands. Always check the MSDS and tech sheets supplied with the product sprayed to make sure you are using an appropriate cleaner.


When spraying cleaning solvents with the gun, ALWAYS close the Air Control Knob first. Atomized solvents are extremely flammable. Properly dispose of cleaning solvents as per local regulations.
