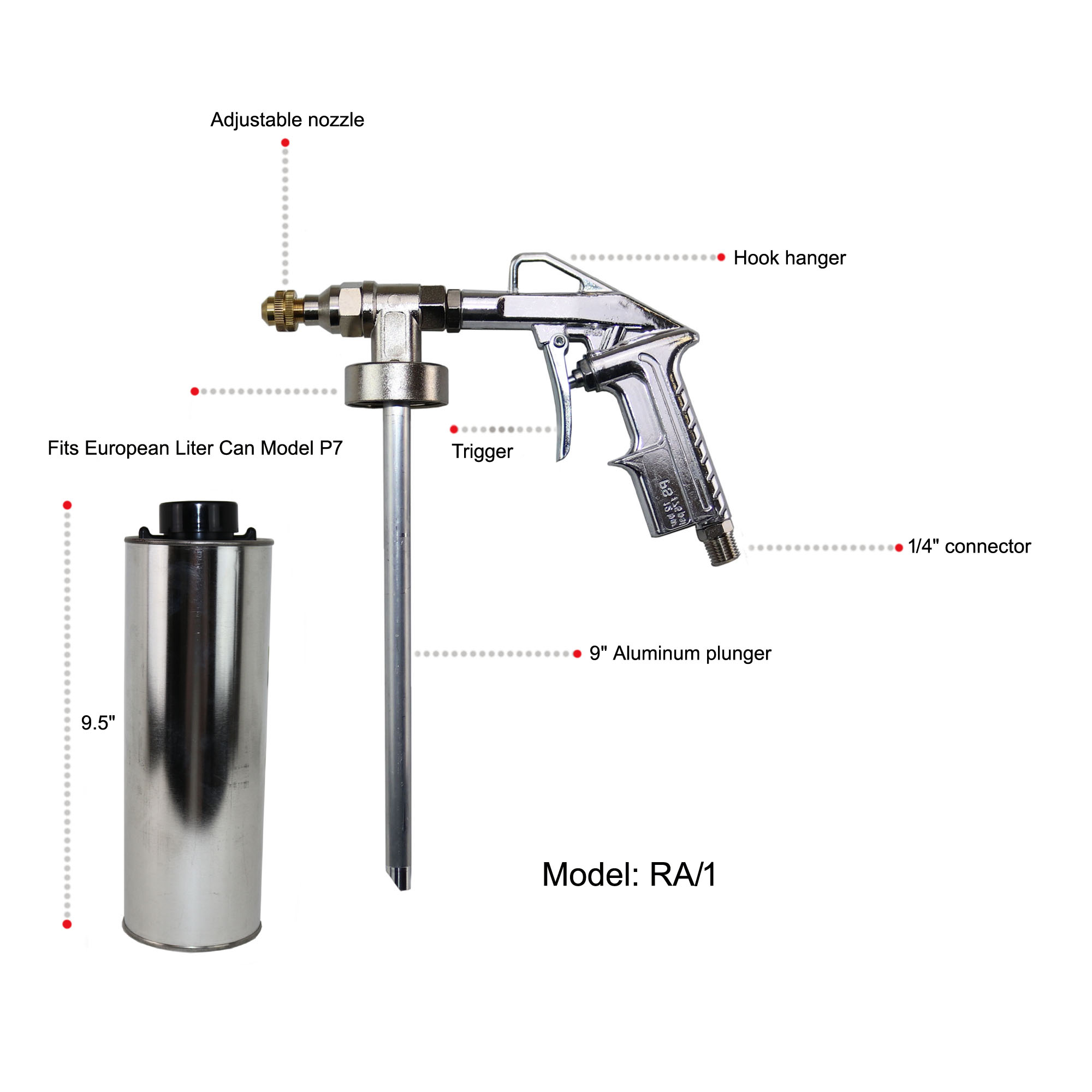

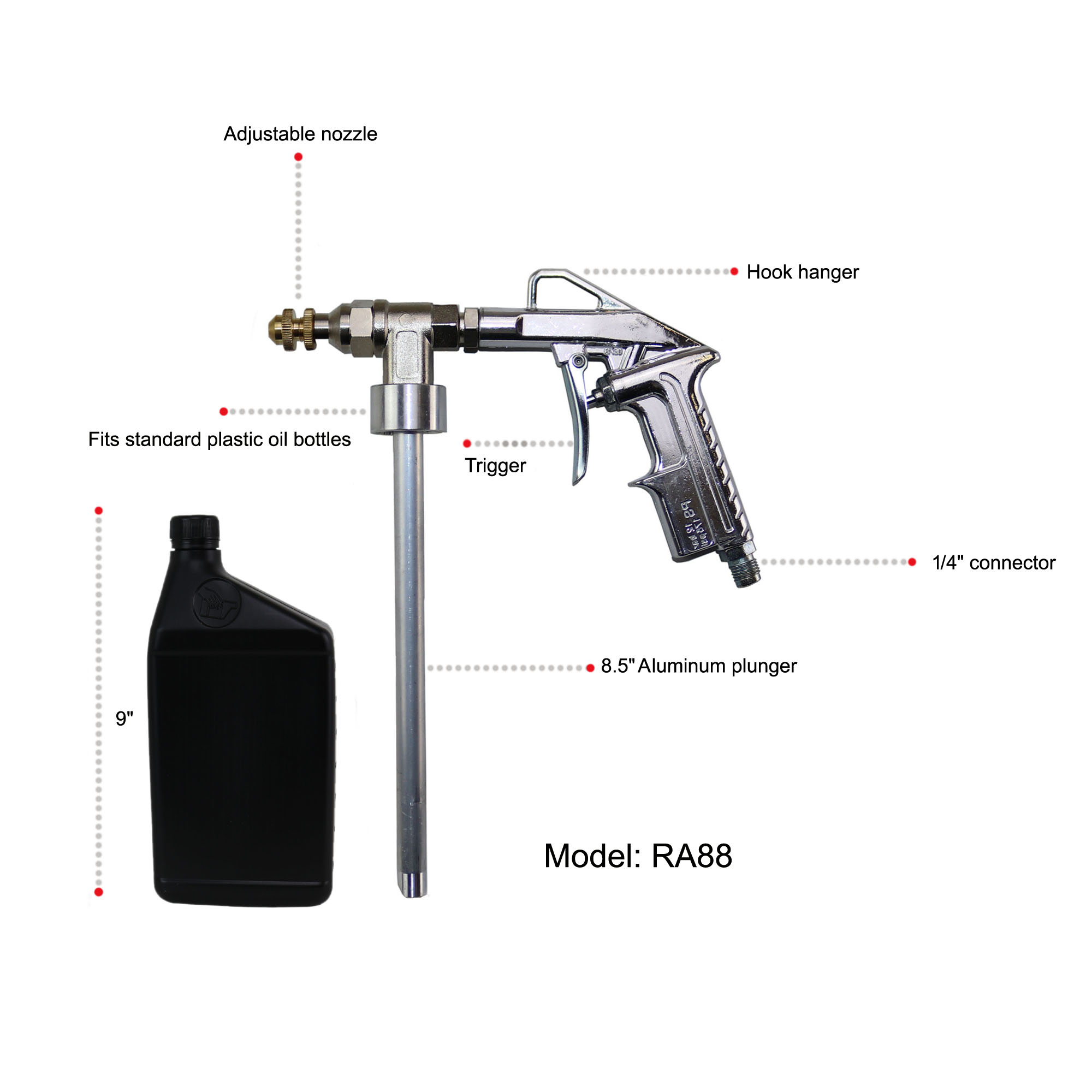

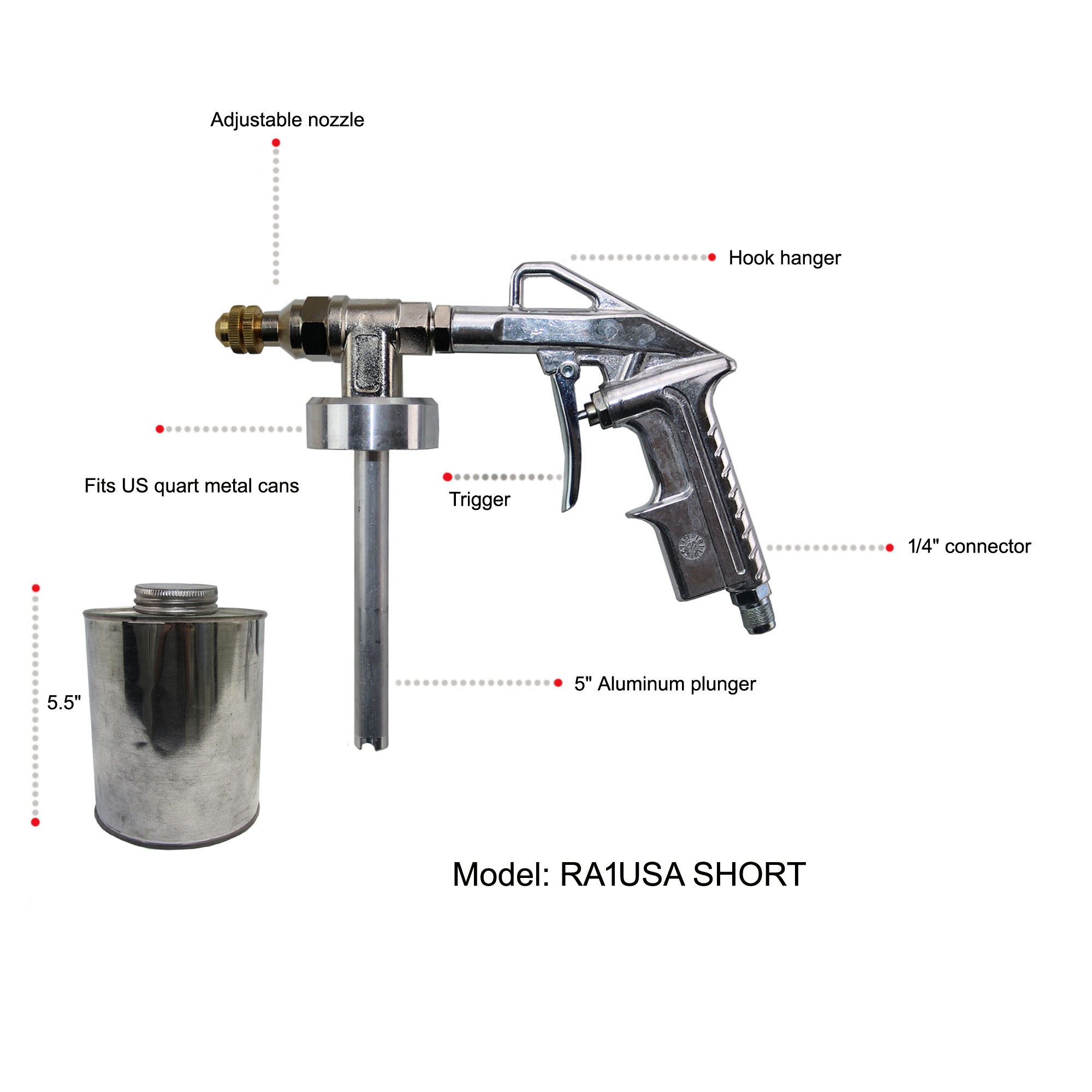

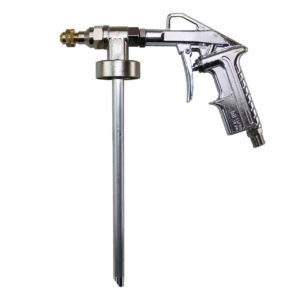

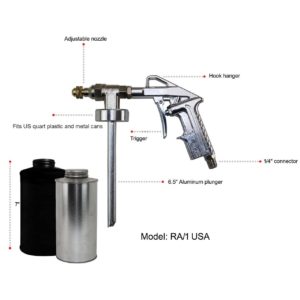

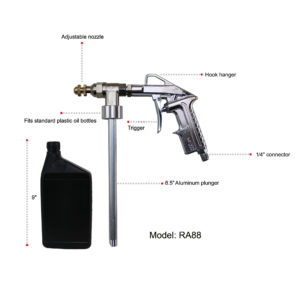

Adjustable Undercoating Spray Gun – RA1, RAUSA, RA88, RAUSA/SHORT

Undercoating gun with adjustable nozzle for the application of soundproofing, gravel protection and bituminous/wax-based rustproofing and undercoating.

Gun body in aluminum
Working pressure: 3-4 bar. (max 10 bar), 40-80 psi (max 140 psi)
Approximate air consumption: 200-300 L per min
1/4″ NPT air connector
Net weight: 14 oz
Noise level <80 dba
Adjustable Nozzle allows for the application of various coats and textures
Made in Italy
Product ID: RA1, RA1USA, RA1SHORT, RA88
Replacement Parts

SEE PRICING & PURCHASE

Spray gun designed for the application of soundproofing, gravel protection and bituminous/wax-based rustproofing and undercoating. The gun has a threaded collar which allows for direct attachment to the product canister. This gun is equipped with an aluminum suction plunger.

A choice of optional plastic spray wands are available.

The Undercoating Wand (item RA1 UCW) may be helpful in the application of undercoating in hard to reach places, i.e. behind mufflers and around exhaust pipes. 24 inches long, 10 MM (3/8″) OD, 5 MM (3/16″) ID, M11x0.75 thread.

The Rustproofing Wand (item RA1 RPW) will atomize the rustproofing in hollow beams, cavities and inside doors. 32 inches long, 10 MM (3/8″) OD, 5 MM (3/16″) ID, M11x0.75 thread.

WARNING: This product can expose you to lead, a chemical which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov.
